Tensile testing for today

A new range of adaptable tensile, compression and bending solutions

SEM, AFM,
XRD, TEM,
Raman,
Optical

See more

Tensile Stage Range

Swift Instruments have developed a range of base tensile stages, which can be fully customised and enhanced to suit any application.

Type A EBSD Stage

Type A EBSD Stage

Type B Flat Stage

Type B Flat Stage

Type C Miniature EBSD Stage

Type C Miniature EBSD Stage

Type C Miniature Flat Stage

Type C Miniature Flat Stage

Tensile Stage Controller

Tensile Stage Controller

Controller Software

Controller Software

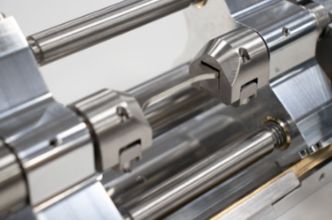

Tensile stages From Swift Instruments can be customised to suit almost any microscope and application. Our base models offer Flat and EBSD angle Form Factors, and load ranges up to 10kN. Tensile and compression tests can be conducted both in a vacuum and air, and samples and can be optionally heated or chilled. Swift Instruments tensile stages are operated via simple and Fast computer-controlled workflow.

Tensile Testing

In-situ tensile testing has become a valuable technique in materials research, allowing researchers to make microstructural observations while conducting conventional tensile testing. However, it can be difficult to Fit a tensile stage inside the confined chamber of a modern SEM, alongside other instrumentation. To solve this problem, Swift Instruments have developed a new range or powerful, Flexible and simple tensile stages For today’s SEMs.

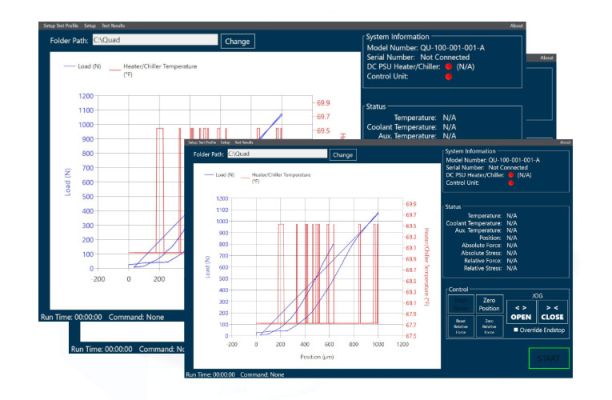

Controller Software

Our software provides the flexibility of control, data processing and analysis to meet your needs. The Swift Controller Software is compatible with PCs running Windows 7 or later. Test routines can be defined which control the load, temperature and positions of the sample. Results can be displayed and saved for later use.

Read more >

Comprehensive and Bespoke In-situ tensile, compression and bending solutions

Max Load (with replaceable load cells):
Type A 10kN
Type B 5kN
Type C 2kN
Custom Designed Sample Clamps available
Flat and 70° Tilted EBSD
Heating up to 1200°C / Cooling* down to -100°C with dual thermocouple inputs for best temperature control

*In development.
Note the above specifications are subject to change without notice

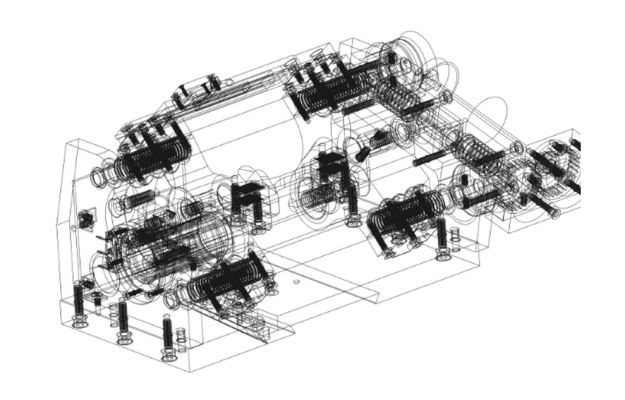

The perfect fit for any application

With every advance in materials science, Finding the ideal tensile stage can be challenging. Swift Instruments are dedicated providing tensile stages with the perfect Fit For almost any application or instrumentation. Whatever the need, our team of skilled engineers can adapt Swift Instruments’ technology to suit, with customised solutions to meet even the most challenging needs.

Read more >

Get in touch today

Let’s talk about Your requirements & applications and resolve your obstacles together with Swift Instruments.

Contact us >

Worldwide Distribution

Swift Instruments – A CN Tech Company is located in Cambridgeshire, UK.
Worldwide Distributors in Europe, Middle East, Asia, USA and Australia
