Type B Flat Stage

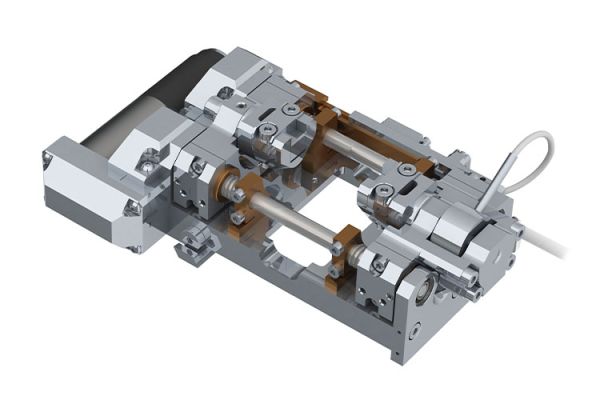

The Type B Flat Stage features a low­profile form factor to fit confined SEM chambers, and can test samples at a 0° flat angle. Load ranges up to 5 SkN are achievable with configurations for 2kN or 5kN load cells.

“Load ranges up to 5kN are achievable with configurations for 2kN or 5kN load cells”

Comprehensive and Bespoke In-situ tensile, compression and bending solutions

Max Load (with replaceable load cells):
Type B 5kN
Custom Designed Sample Clamps available
Flat and 70° Tilted EBSD

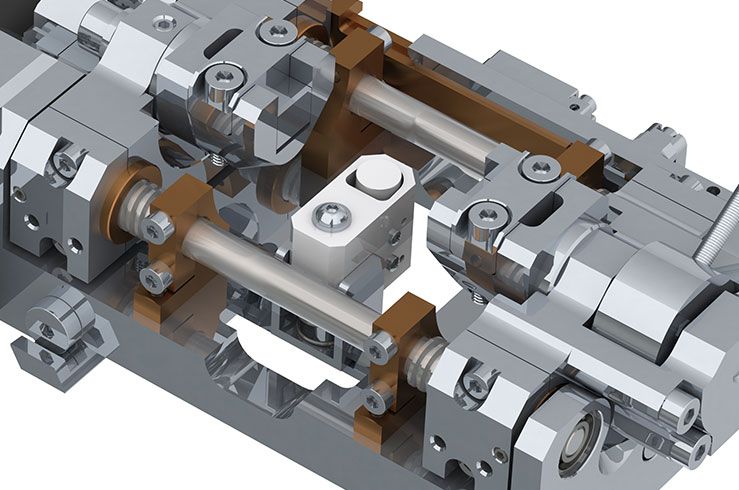

Heating up to 1200°C / Cooling* down to -100°C with dual thermocouple inputs for best temperature control

*In development.
Note the above specifications are subject to change without notice

Download Product Sheet

Tensile Stage Model Range

Swift Instruments have developed a range of base tensile stages, which can be fully customised and enhanced to suit any application.

Type A EBSD Stage

Type A EBSD Stage

Type B Flat Stage

Type B Flat Stage

Type C Miniature EBSD Stage

Type C Miniature EBSD Stage

Type C Miniature Flat Stage

Type C Miniature Flat Stage

Tensile Stage Controller

Tensile Stage Controller

Controller Software

Controller Software

Tensile stages From Swift Instruments can be customised to suit almost any microscope and application. Our base models offer Flat and EBSD angle Form Factors, and load ranges up to 10kN. Tensile and compression tests can be conducted both in a vacuum and air, and samples and can be optionally heated or chilled. Swift Instruments tensile stages are operated via simple and Fast computer-controlled workflow.
